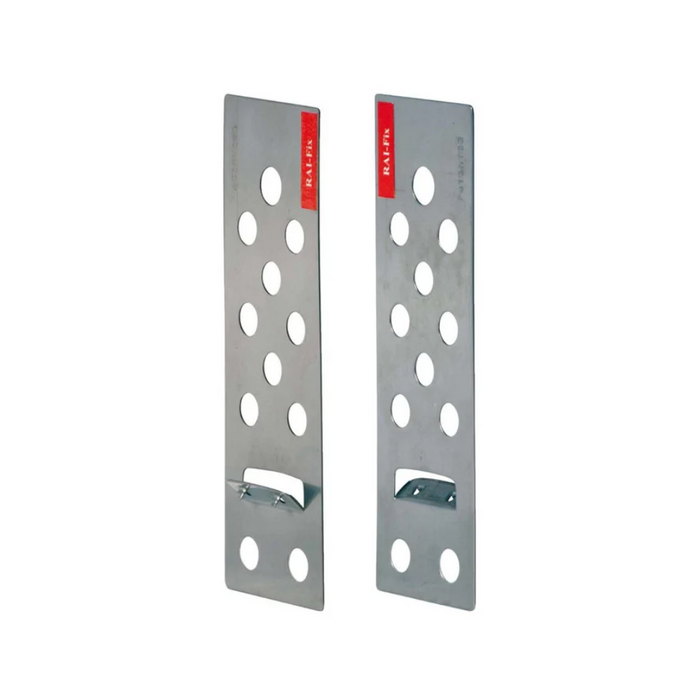

Raimondi Rai-Fix 6mm (1/4") Fastening Clips
Raimondi Rai-Fix 6mm (1/4") Fastening Clips
Raimondi Rai-Fix 8mm Tile Safety Hook – Invisible Safety Anchor for Large Format Tile Façades
The Raimondi Rai-Fix is a stainless steel safety withholding hook engineered to prevent large-format tile and slab panels from detaching when installed vertically with adhesive. Ideal for exterior cladding and ventilated façades, Rai-Fix is a completely hidden mechanical anchor that delivers invisible strength and essential peace of mind.
Features & Benefits
-
Invisible Mechanical Anchor for Vertical Tile Applications
Required by code in many regions, Rai-Fix ensures mechanical support for tiles/slabs over 12" (30 cm) tall in wall installations using adhesive only. -
Installs Completely Hidden Behind the Tile
Maintains clean architectural lines — Rai-Fix sits between the slab and substrate, entirely concealed after installation. -
Compatible with Thin Gauges
Works with tiles as thin as 6 mm (¼") and is ideal for modern large-format porcelain and stone panels. -
Fast & Simple Jobsite Installation
Install in seconds with the LTGT (RAI-CUT) grooving tool, then secure to the substrate with a 6 or 8 mm anchor (¼" or 5/16"). -
Stainless Steel Construction
Corrosion-resistant and built for durability in all weather conditions — perfect for exterior installations. -
Design-Approved & Code-Conscious
A vital safety backup for projects where adhesive bond failure could result in damage or injury. -
Expands Architectural Freedom
Use any slab size on walls safely — opens up design options for high-end porcelain facades and large tile installs.
Technical Specifications
| Specification | Value |
|---|---|
| Minimum Tile Thickness | 6 mm (¼") |
| Wing Size | 8 mm (5/16") |
| Material | Stainless Steel |
| Installation Method | Grooved tile back + anchor screw |
| Anchor Hole Size | 6 or 8 mm (¼" or 5/16") |
| Visibility After Install | Fully hidden behind tile |
| Ideal Use | Mechanical backup for vertical slabs |
| Compatible Materials | Porcelain, ceramic, marble, stone slabs |
| Recommended Tool | LTGT (RAI-CUT) Grooving Tool |
Installation Overview
-
Use the LTGT grooving tool to cut a precise channel in the back of the tile.
-
Insert Rai-Fix hook into the groove.
-
Drill into wall and secure with an anchor through the hook.
-
Apply adhesive as usual, taking care not to block the anchor area.
-
Tile is mounted safely with a hidden mechanical backup.
| Tile Size | *Minimum Hooks Recommended |
|---|---|
| 12" x 24" (30x60 cm) | 1 per tile |
| 24" x 24" (60x60 cm) | 1–2 per tile |
| 24" x 48" (60x120 cm) | 2–4 per tile |
*Final anchor count depends on tile weight, wall condition, and regional code. Always consult an engineer.
Raimondi Product Details
- Brand: Raimondi
- Product: Raimondi Rai-Fix 6mm (1/4") Fastening Clips
- Product type: Thin Tile/Panel Accessories
