Mark E Industries Quick-Pitch Kit – Perfect Slope for Every Shower
Get a flawless ¼” per foot slope every time with the Mark E Industries Quick-Pitch Kit. Whether you're building a standard or custom shower pan, this system makes it easy to create proper drainage without lasers, levels, or guesswork.
< data-end="462" data-start="459">Features & Benefits
-
Accurate ¼” Slope – Screed guide ensures the correct slope to your drain every time.
-

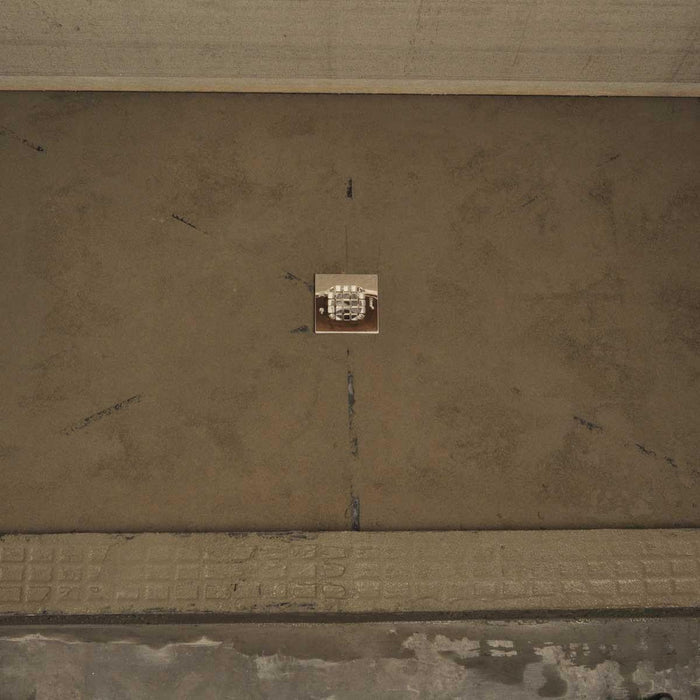

Easy-to-Install – Simply snap the float sticks into the center ring, set, and screed.
-
Eliminates Guesswork – No measuring, laser levels, or slope math required.
-
Kit Options for Any Shower Size – From small showers to 12' x 12' custom pans.
-
Works with Round & Square Drains – Compatible with nearly all shower drain covers.
-
Durable Plastic Construction – Strong, lightweight, and stays in place during installation.
-
Custom Shower Friendly – Add extra sticks to accommodate multiple slopes and square drains.
Kit Variants & Specifications
| SKU | Kit Name | Includes | Coverage Area | Float Stick Size |
|---|---|---|---|---|
| QPK-101 | Standard Quick-Pitch Kit | 6 float sticks, 1 center ring | Up to 3 ft x 5 ft | 1" to 1 ¾" taper, 36" long |

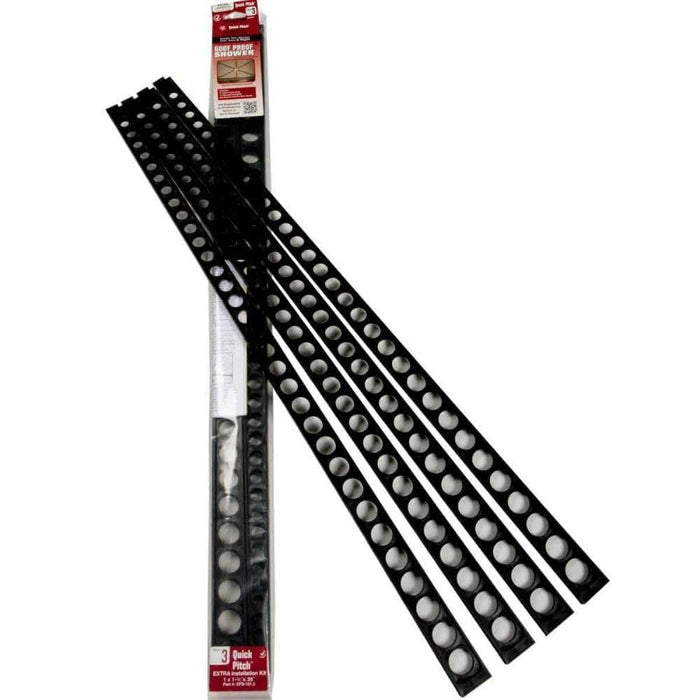

| XFS-101.2 | Extra Float Sticks (Add-On Kit) | 4 additional float sticks | Expands standard kit | 1" to 1 ¾" taper, 36" long |
| EFS-103 | Extended Float Stick Kit | 8 long float sticks, 1 center ring | Up to 12 ft x 12 ft | 1" to 2 ½" taper, 72" long |
Pro Tip: For square drains, use extra float sticks to pitch in all four directions.
